室內配線(乙級)術科第二站推演平台 (V4.0)

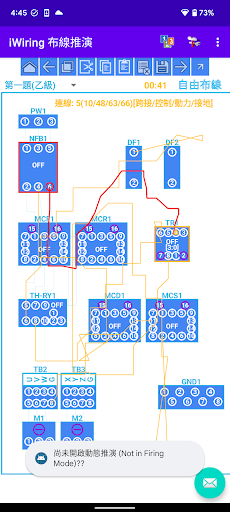

Operating device: web/PC/pad/phone (all can be used)Practice platform (Level B) website - https://www.johnfon.com/WebCube/iWiringG2Practice platform (Level C) website - https://www.johnfon.com/WebCube/iWiringG3This online training platform allows users to dynamically deduce wiring results,Power transmission verification, inspection and correction of wiring connection paths to meet the technical requirements of skilled indoor wiring verification.iWiring V4.0 version update: (can be installed on mobile devices with Android 4 ~ 14)Operation mode description:(1) Free wiring: After widening and moving, you must click on the blank area, otherwise the wire ends will be lost and need to be reconnected.(2) Dynamic deduction: Verify whether the control circuit and free wiring are completely correct.(3) Static wiring check: must switch to free wiring mode.(4) Dynamic line checking: You must switch to the dynamic deduction mode and touch the seconds area.(5) Wiring archive: The [Wiring archive] icon in the upper right corner saves the free wiring content into the file.(6) Wiring log: You can view the wiring log through the drop-down menu in the upper right corner. (When the seconds stop, the wiring log will be written)(7) Sound effect touch: The drop-down menu in the upper right corner can turn on and off the sound effect.(8) Version information: Use the drop-down menu in the upper right corner to view version-related information.(A) Contact correction: Use the multi-purpose (left arrow) button to correct incorrectly connected contacts.(B) Wiring requirements: Don’t worry about whether the wiring is flat, the most important thing is that the contacts are correct.(C) Wiring termination: The control line, power line and grounding line are connected, and the seconds stop.(D) Wiring practice: Each question must be completed within 8 minutes, and proficiency will be no problem at the second station.(E) Wiring method: Vertical light touch with fingertips is better at focusing on touch points and routing.(F) Deduction record: (+) starts the deduction tracking, (-) closes and displays the deduction tracking record.(G) Amplification screen: The icon [Home] in the upper left corner can open and close the operation area of ​​the expansion screen.(H) Wiring example: Pull down the option [Cloud Example] in the upper right corner to download the wiring reference example from the cloud.Tip related instructions:(1) Circuit Reference - Click on the upper left corner [. . . ] menu, and then click [Circuit Reference] to display the circuit diagram of the topic.(2) Point-line connection - In the [Dynamic Deduction] [Dynamic Line Check] operating mode, the point-line connection function is automatically disabled.(3) Contact prompt - Click the appliance contact, and the second column of the screen operation area will automatically display the appliance contact number and coordinates.(4) Text browsing - Built-in text browsing window, wiring logs and wiring rankings do not need to be browsed by other browsers.(5) Wiring drill - Click the two icons in the middle of the toolbar and choose self-wiring or cloud sample wiring drill.Switch control mode description:(1) Touch mode – the operating behavior of touch type switchTouch switch:-Double contact switch – la, lb, SWITCH_A, SWITCH_B.- Three-contact switch – LS- Four-contact switch – SW, STOP, ON, OFF, FWD, REV.(2) Latch mode – operating behavior of toggle type switchtoggle switch:- Three-contact switch – TH_RY, SK, PH, PB, FS, EMS, COS, SWITCH_C.In addition, you can load cloud examples and click [Free Routing | Dynamic Deduction].You can perform power transmission to check the operating status of the circuit and sound effect prompts!If you have any questions or operational issues, please feel free to let us know.Practical experience in mobile phone wiring:(1) Don’t worry about whether the wiring is flat, the most important thing is that the contacts are correct.(2) Multi-purpose (left arrow) button can correct incorrectly connected contacts.(3) The sound effect touch can be controlled by pressing the drop-down option switch in the upper right corner.(4) If you complete each question within six minutes, your wiring proficiency will be no problem.
